The SPADIC Project Website

And another snapshot of the SPADIC history ...
randomImage

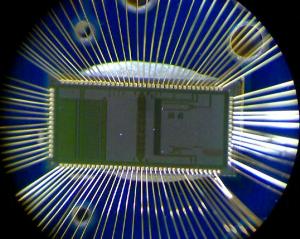

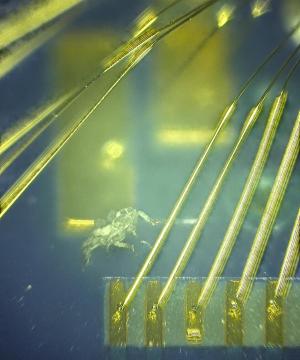

March 2011: An enlarged photograph of a wire-bonded SPADIC v0.3 is shown. With good eyes and some fantasy one can see a broken connection on the lower right edge of the die. The small pad-pitch of only 80┬Ám together with the large pad number made the bonding a big challenge. The final SPADIC will therefore have an increased pad-pitch and an optimized number of pads.

Welcome to the official SPADIC project website. On the following pages you will find very different kinds of information about the SPADIC project in general and on the SPADIC ASIC in particular.

What is SPADIC?

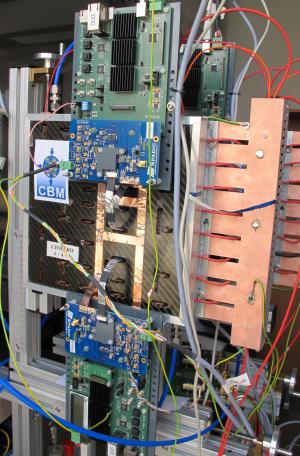

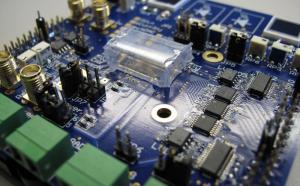

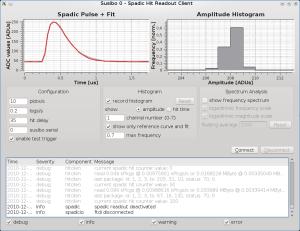

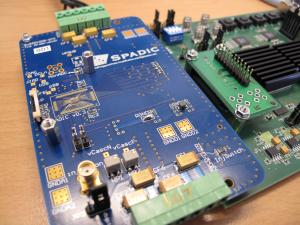

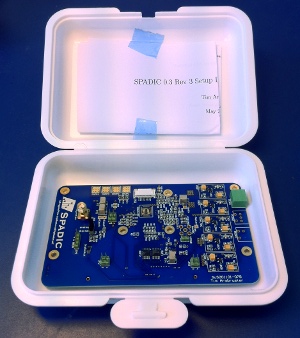

The SPADIC project relates to the name of the SPADIC readout chip (Self-triggered Pulse Amplification and Digitization asIC) which is intended to read out and process small electrical detector signals on a single piece of silicon. The latest SPADIC version 1.0, which is actually the 6th but first full-blown prototype, is a 32-channel mixed-signal readout chip dedicated for the readout of the transition radiation sub-detector (TRD) that will be part of the future CBM heavy-ion experiment at GSI/FAIR. SPADIC 1.0 provides low-noise and low-power analog pre-amplification, 8 bit digitization, IIR signal processing, self-triggered hit detection, neighbor readout, full pulse recording, meta data generation, synchronization mechanisms, and various other features.
